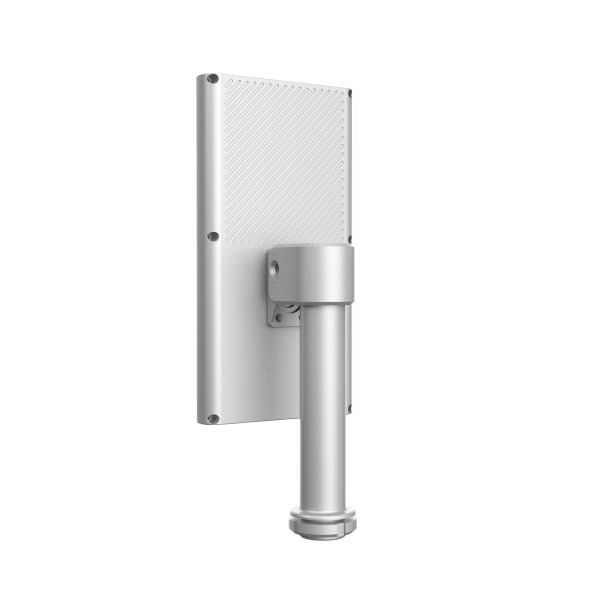

Face Recognition Terminal
Model: WCH-PR02 Come with three cameras Human bodies can be detected with high accuracy even in night vision.
Model: WCH-PR02
Come with three cameras,
human bodies can be detected with high accuracy even in night vision.
Features
● Support Real Time Human Body Detection.
● Using Linux operating system, better system stability.
● Face recognition algorithm to accurately recognize faces, face recognition time is less than 1s.
● Unique The camera uses H.265 Main Profile encoding, compatible with NVR and other storage devices through the ONVIF protocol.
● From -45 ° C to + 70 ° C environment for long-term stable operation.
● Support free switching 1:N/1:1 (IC card, QR code, ID card) recognition mode 1: N with 0.8s comparison efficiency.
● Outdoor IP66 water proof and dust proof.
● Mean time between failures MTBF>50000 H.
● Support for AD file playback.
● Support PIR human body sensing wake-up function.
● Support TF card storage, pictures are stored continuously for 1 year, video is stored continuously for 7 days.
● Support 40000+ face matching library and 1600,000 face recognition records.
● Rich interface protocol, support SDK and HTTP protocol under various platforms such as Windows/Linux.
● Support machine vision optical wide dynamic ≥120dB, suitable for backlist environment monitoring.
● Support tracking of personnel movements under strong backlight conditions.
● The host supports the Wiegand interface to connect with the personnel gate and the access control host, and acts as a face recognition reader.The device supports the external access control host or Wiegand card reader through the international standard Wiegand protocol (WG26/WG34).
Specifications
Model |
WCH-PR02 |
|
Hardware | ||
Processor |
Sextuple processor + 2G memory + 32G flash |
|
Operating system |
Linux Operating system |
|
Storage |
Support TF card storage |
|
Camera module |
H21A |
|
Sensor |
1/2.8" Progressive Scan CMOS |
|
Lens |
3.6mm(optional) |
|
Performance | ||
Recognition height |
1.2~2.2 meters,Angle can be adjusted |
|
Recognition distance |
0.5~5 meters,depends on lens |
|
Face angle |
30 degrees left and right, 30 degrees up and down |
|
Recognition time |
Less than 1 second |
|
Function |
Support 400,000 capture library, real-time capture, support 160,000 list library |
|
Interface | ||
Switch inputs |
1ch switch input |
|
Power |
DV12V/3A |
|
Network Interface |
1x RJ45 10M / 100M Adaptive Ethernet port |
|
Wiegand Interface |
1ch Wiegand interface input/output |
|
USB interface |
1ch USB interface |
|
Camera Data | ||
Camera |
Three cameras:1x face capture camera, 1x IR camera, 1x B/W camera |
|
Effective pixels |
2MP,1920*1080 |
|
Min Illumination |
Color 0.01Lux @F1.2(ICR);B/W 0.001Lux @F1.2 (ICR) |
|
SNR |
≥50db(AGC OFF) |
|
WDR |
≥120db |
|
Video Coding |
H.265 Main Profile /H.264 BP/MP/HP /MJPEG |
|
|
Resolution |
Main stream |
50Hz: 25fps (1920×1080,1280×720) |
60Hz: 30fps (1920×1080,1280×720) | ||
Sub stream |
720*576,1-25(30)fps/640*480,1-25(30)fps |
|
Regular | ||
Operating temperature |
-45℃ - +70℃ |
|
Working humidity |
5～90%relative humidity, no condensation |
|
Powered by |
DC12V/3A |
|
Power |
20W(MAX) |
|
Device Size |
128(W) * 28(T) *240(H)mm |
|
Screen Size |
7 inches |
|
Weight |
1.5 kg (without base plate) |
|
Device Size
Interface
No. |
Name |
Quantity |
Remark |
1 |
Network |
1 |
RJ45 |
2 |
Power |
1 |
DC12V IN |
3 |
USB |
1 |
USB 2.0 |
4 |
Switch Output |
1 |
Switch output interface A+/B- |
5 |
Wiegand protocol input interface |
1 |
1. Vcc12V 2. GND 3. D0 4. D1 |
6 |
Wiegand protocol output interface |
1 |
1. Vcc12V 2. GND 3. D0 4. D1 |
