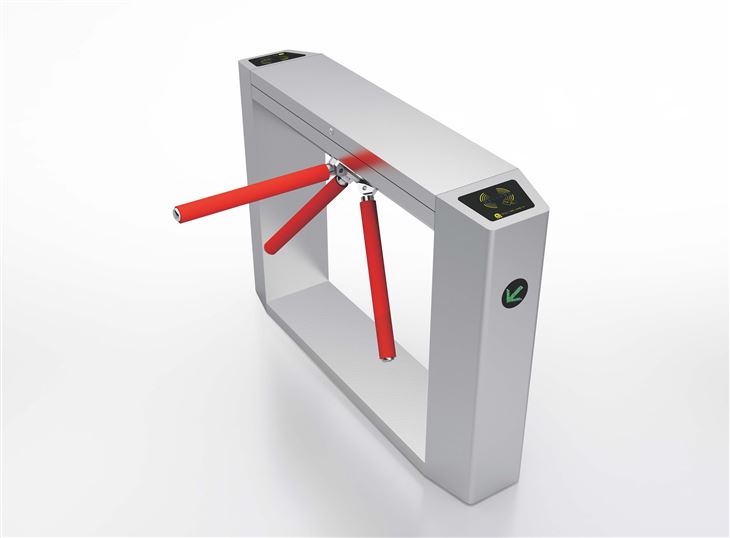

Tripod Turnstile Access Control
Tripod turnstile access control Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life. With the power drop-shot function, can also carry out additional remote control rod ,it in the management and deal with...
Tripod turnstile access control
Designed reasonable and reliable movement, noise small, the internal hydraulic device automatically Buffer, run a smooth, long service life.
With the power drop-shot function, can also carry out additional remote control rod ,it in the management and deal with emergencies .

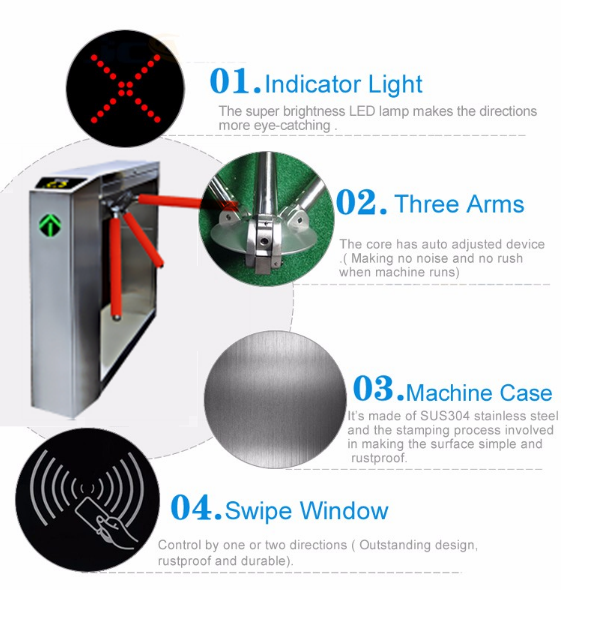

Prompted with the direction of LED lights.
Can be set "with memory " or "not to bring memory " function (when set to "bring Memory", the brush can be used in a scenic spot ticket too many people groups occasions).
With automatic reset function ,namely ,access to lock permissions, set at the time Three is no inter-lock ,three roller gates automatic cancellation of this authority back to the lock Set state.
Waterproof ,sunscreen ,cold and high temperature.
Installation with personalized interface, compatible with IC,ID cards and other smart cards.
A unified ,standard external electrical interface with a variety of reading and writing equipment Freely articulated ,easy system integration .
Technical Parameters
Model No | WCH-TY04 |
Material | 1.5mm 304# Stainless Steel |

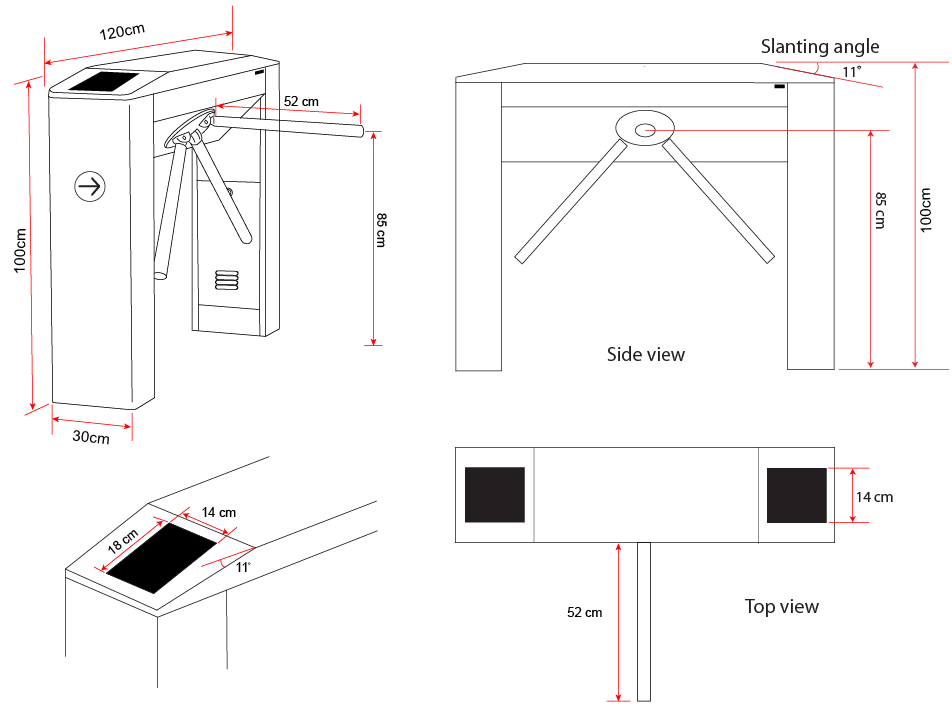

Dimension | 1,200*280*1000mm (L*W*H) |
Channel width | 500-600mm |
40mm | |
Open or close time | 1 second |
Passage direction | Single or Bi-directional |
Flow of passage | 30-40 passengers per minute |
Motor | DC Brush motor (24v) |
Emergency mode | Free egress when fire signal triggered |
Power supply | AC220±10% V,50HZ |
Power output | DC12V |
Control typw | RFID/Barcode/Fingerprint control |
Working temperature | -45℃- 80℃ |
Lifetime | Over 3 million times |
ODM/OEM service | Available |
Usage | Indoor or outdoor |
Gross weight | 65kg |
Warranty | One Year |
Advantage
Matt finished housing surface, dustproof and rainproof design for outdoor use.
Durable DC brushless motor, highly integrated mechanism, 100% heavy duty operation.
Drop arm when power off, raise arm automatically when power on.
Compatible with other access control system.
Convenient installation and maintenance.
All of our products delivery by Sea or Air,the pack material is Poly film+Carton,and this pack way has been tested many many time in different transportation situation from our Simulated transport machine(see my attachment).it shows a good packing method from our many years experience
