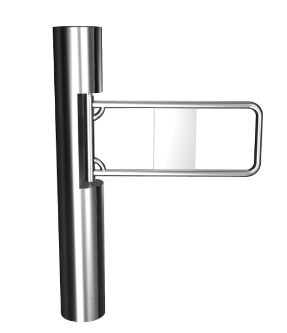

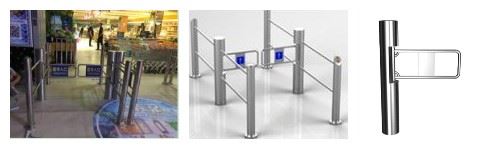

Shop Swing Turnstile

Problem-self-test and alarm function. User-friendly maintenance and use; With automatic reset function. Gate opening.

Product Details


Feature

1. Problem-self-test and alarm function. User-friendly maintenance and use; With automatic reset function. Gate opening. After a specified period of time does not pass. The system will automatically cancel the users current access permissions; Auto-reset delay. the standard is turned on automatically reset after 10 seconds

2. Through the main control on the half-built small-press plate. programmable devices running status

3. When valid card read and passenger passed. arm can be delayed to close from 1-10s which can be set on the control panel.

4. One-directional. bi-directional function. One-directional. or bi-directional control personnel access

5. Auto-re position function: After card read. passenger not pass within regulated time period. swing gate will cancel this passing right. And the regulated time period for passing can be set by managers.

6. If passenger pass without card read or valid card read. flap barrier will alarm until passenger get back from the flap barrier and then take a valid card to be read for passing.

7. Erosion control features. in the absence of gate opening signal is received. the arm automatically locked

8. Anti-rush function: if there is no open single. arm will be holding tightly.

9. Adjustable arm swing synchronized (for the double pendulum case)

10. Adjustable normally open or closed. in order to meet the requirements of the different venues

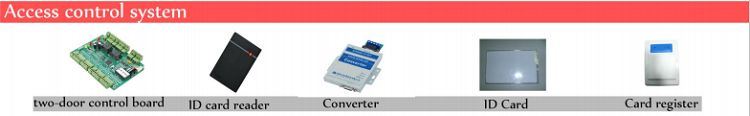

11. Connecting with a variety of reading devices can be linked to the work of receiving the signal relay switch

12. Swing gate is with 485 interface for long-distance control concern and the integration of various readers and writers.

Managing computer directly through the remote control and management

13. Auto power-off arm laid them out. power-on self-closing. meet fire safety requirements

14. Double anti-clipping function: photocell anti-clipping and mechanical anti-clipping.

When passenger is going through the swing barrier. photocell will detect out this situation and will not close. After passenger passed. arm will close automatically. During its re position. if arm meets any obstacle. arm will get back automatically or stop working for a while with very slight force. Also it will alarm.

15. Direction display to guide passenger which direction is to go.

16. Card-reading with memory or without memory function.

17. Swing barrier can control the population inside in the control of software.

18. Stable running with little noise.

Specifications

Name	Swing gate	Model	WCH-TB06
Housing Size	168x600x1015mm	Power supply voltage	AC220V±10V, 50±10HZ
Net Weight	30kg	Working temperature	-25℃--+60℃
Gross Weight	40kg	Relative humidity	≤90% non-condensing
Drive current	≥10mA	Drive motor	DC motor 200w 24v
Time for swing open and closed	1-2S	Control type	IC/ID/Barcode control accepted
Passing time	3S	Communication distance	≤1200m
Time for auto-reset	10S	Swing angle	0-180
Swing width	600-900mm	Max channel width	600-900mm
Communication Interface	RS485/RS232	Working environment	Indoor or outdoor (with a tent over)
Machine center	Imported Germanic technological motor	Working mode	One directional or bi-directional optional
Housing Material	202 or 304 grade stainless steel optional	Passing speed	40persons/ min (normal open mode) 30persons/ min (normal closed mode)
