Stainless Security Swing Barrier Gates
Product Parameters: Functions & Features 1) With fault self-check and logical judgment function, convenient for user maintenance and functional debugging; 2) Flexible keys to set the performance of the device, up to dozens of; 3) Intelligent anti-clamp function, automatically stop or rebound...
Product Parameters:
Material |
1.2mm SUS304 |
Size |

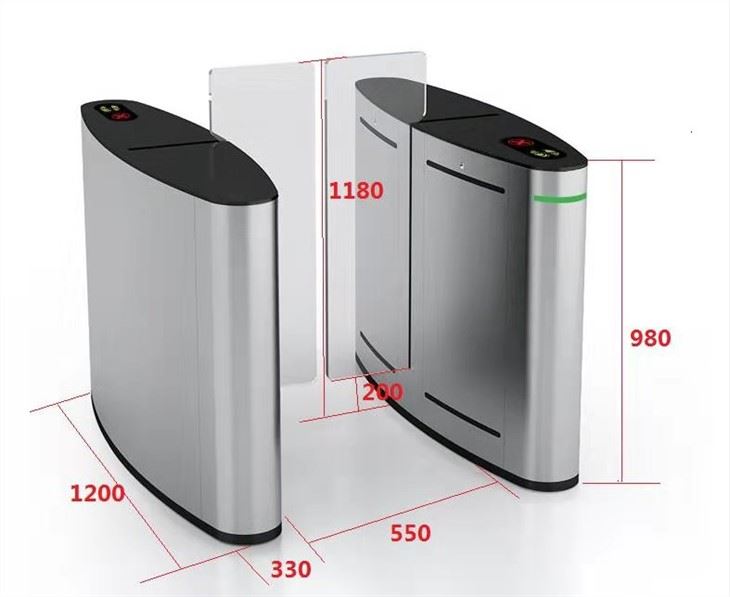

1200×330×980mm |
Sensor |
4 pairs |
Pass speed |
35p/m |
Pass width |
550mm |
Input voltage |
100V~240V |
Motor type |
24V DC Brushed Motor |
Environment |
-20~+50℃ |
Motor power |
30W |
Input signal |
Dry contact/RS485 |
Functions & Features
1) With fault self-check and logical judgment function, convenient for user maintenance and functional debugging;
2) Flexible keys to set the performance of the device, up to dozens of;
3) Intelligent anti-clamp function, automatically stop or rebound when there is someone or obstacle at the reset of the block arm, and send an alarm signal at the same time;
4) Multi-mode alarm function, including illegal break-in, anti-break-in, trailing, timeout alarm, etc.;
5) Anti-shock function, when no signal is received to open the brake, the block arm automatically locks;
6) Reverse intrusion close alarm function, when forward swipe card, someone first from the reverse intrusion, the block wing quickly shut down at the same time alarm;
7) Flexible traffic indication function, high brightness indicator light and its humanized prompt function, make the channel more characteristic;
8) Normally open and normally closed mode can be adjusted, easily controlled by dial code or external manual button;
