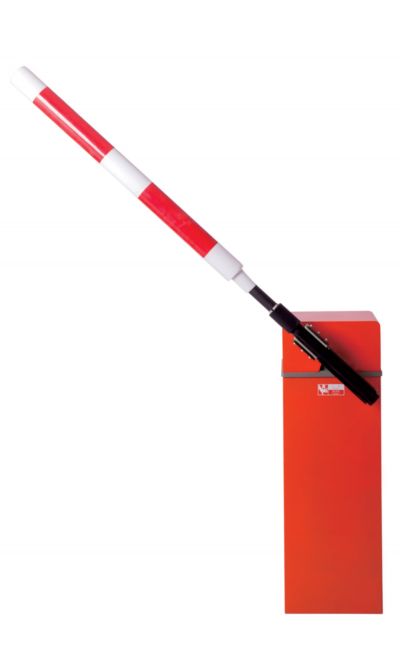

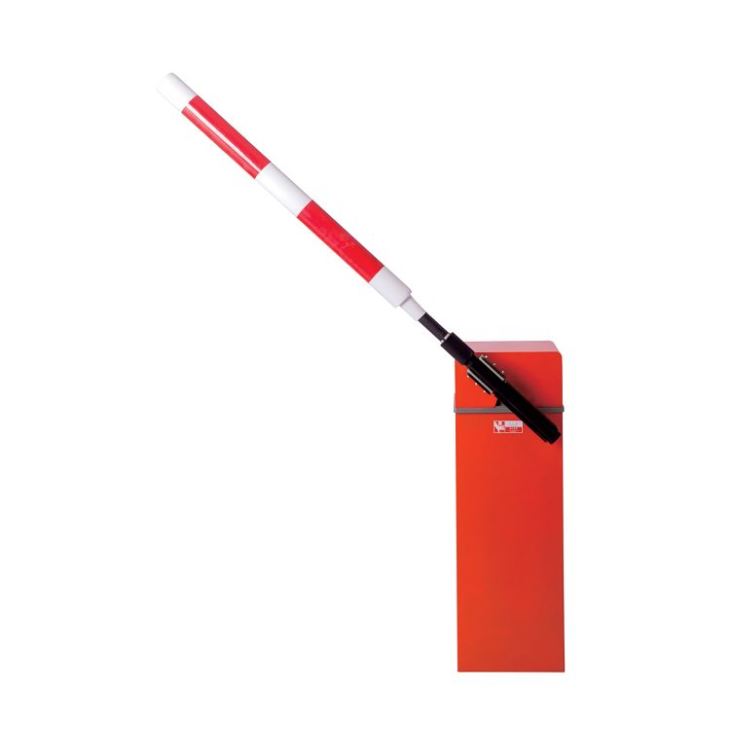

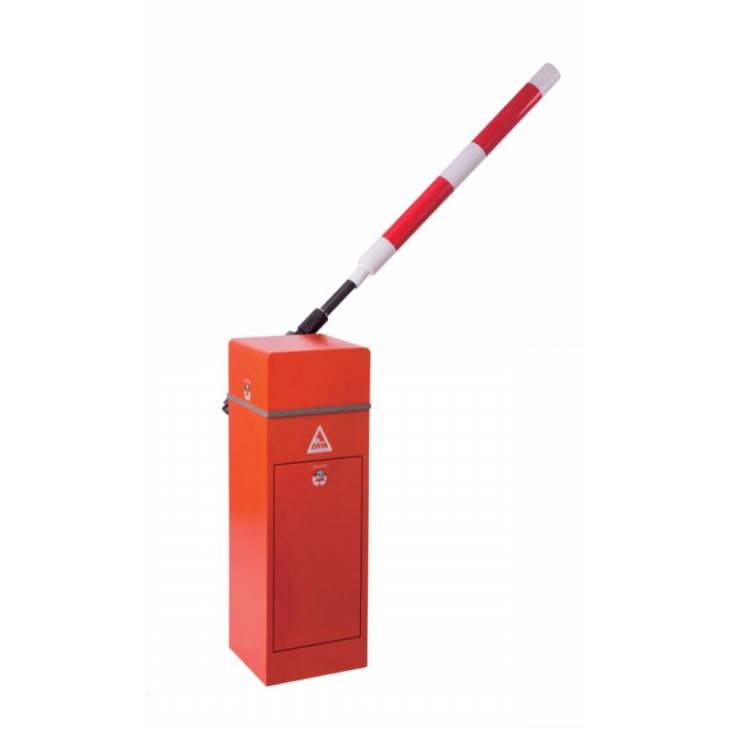

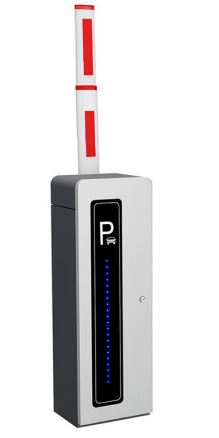

High Speed Barrier Gate


Barrier is an automatic traffic stopping equipment that apply to server control technology and digital whole circuit contact less logic circuit technology. The functions are: circuit self-detecting, anti-hitting and temperature management. The main material is cold-rolled steel plate.

Main Features

1.1 The main controller is designed and manufactured with high reliability microprocessor

High system integration and strong logic function;

The main controller provides a variety of operating modes for users to choose from, which can meet the needs of users for different functions. In addition, users can install application software to achieve the special functions required;

The main controller is equipped with an interface that can be connected to peripherals such as an automatic toll collection system, a loop sensor, and a signal light.

1.2 Core technology is the use of specially designed AC220V special torque motor

The motor is a low speed maintenance free motor. The motor can be braked in any position without damage. In the extreme position of the two terminals, the motor power is automatically reduced to about 20W, which saves energy and avoids condensation and corrosion, even in cold winters;

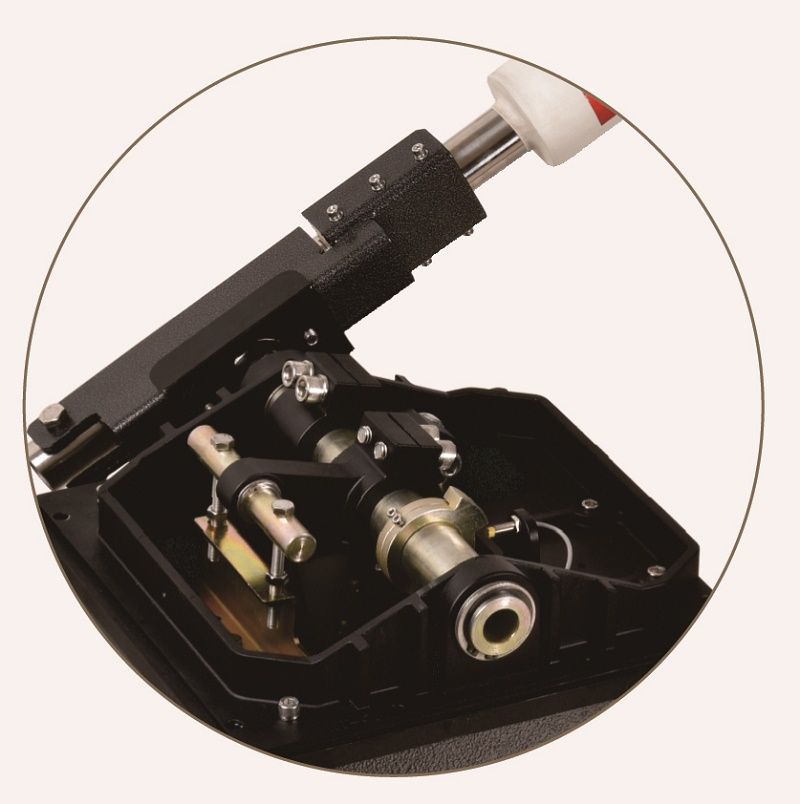

The transmission mechanism adopts a sinusoidal connecting rod mechanism, and the deceleration device used by the common automatic intercepting rod is removed, so that the whole structure is more compact and reasonable, and the mechanical failure is greatly reduced;

The special motor coil structure makes it instantaneous and high-current and instantaneous voltage fluctuations of ordinary motors in the moment of power-on and power-off. It can be directly powered by UPS without affecting the normal operation of other equipment in the same power grid.

1.3 Appearance structure is both durable and beautiful

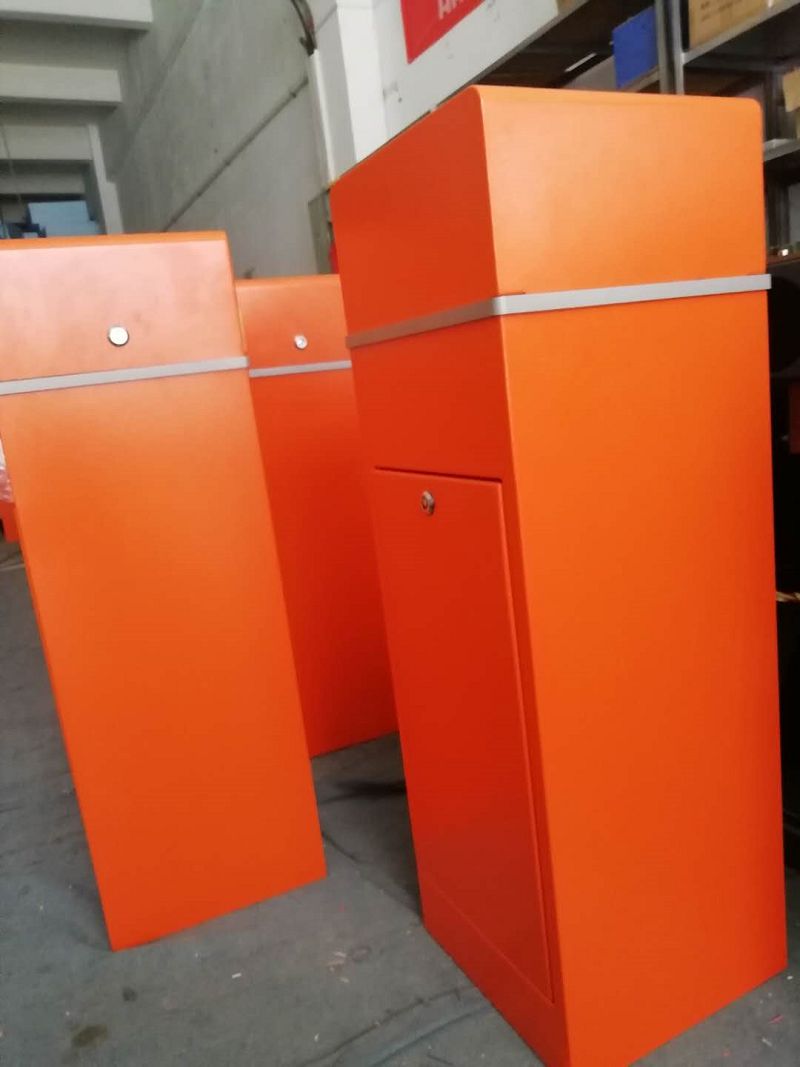

The chassis is made of specially treated steel plate, and the surface is coated with orange or orange high-grade automotive paint to prevent corrosion and prevent fading due to ultraviolet radiation.

The bar is made of special aluminum and has a red reflective film to make it visible at night.

In order to suit different occasions (such as in an underground parking lot with limited space), a folding bar is also specially designed.

1.4 Has a full range of security features

Anti-collision mechanism: When the vehicle hits the automatic bar stopper due to an accident, the anti-collision mechanism can rotate the bar by 90o, thereby avoiding or reducing the damage to the automatic bar and the vehicle;

LED red and green dual display signal: automatically switch traffic lights for traffic vehicles;

Infrared protection device: It can detect the passage of personnel to avoid accidents;

Remote control device: wireless remote control operation can be realized, and the effective control distance is not less than 25m;

Anti-smashing function: After embedding the induction coil, when the vehicle is under the bar, the bar will never drop, thus avoiding accidents.

Specifications

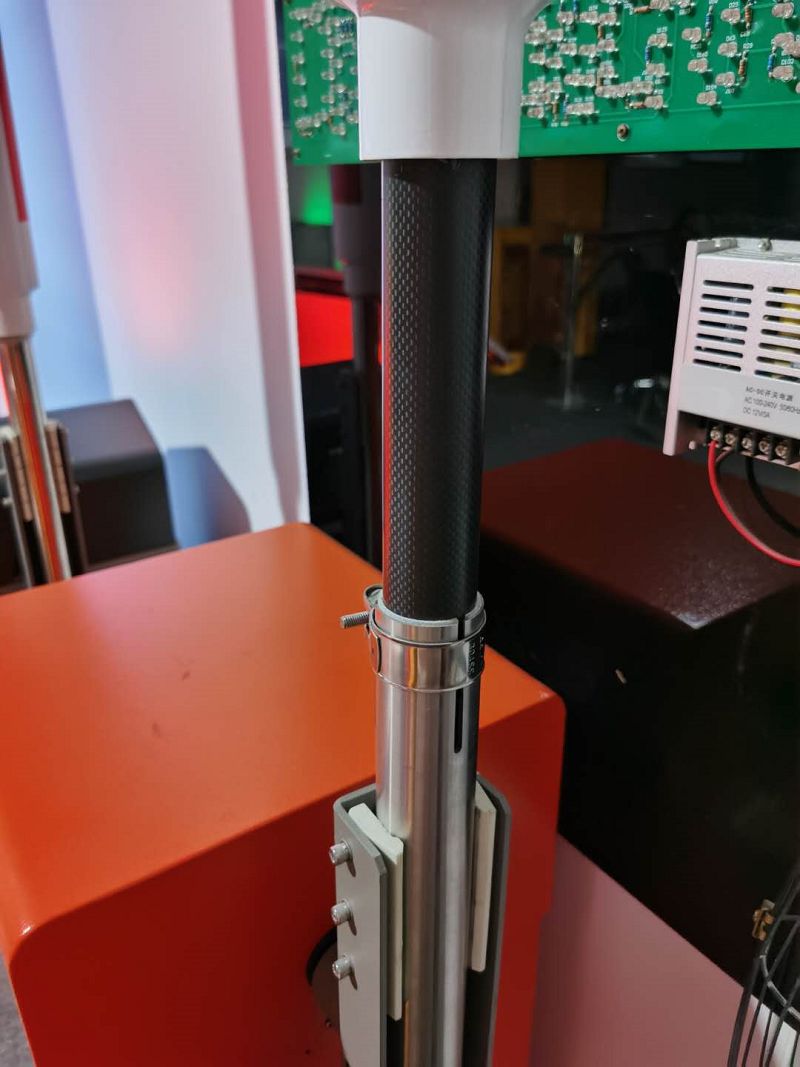

(Carton Fiber Barrier Arm)

Applications

Control and management of parking lots, toll gates, goods yards, railway crossings, highway toll station, commercial premises, and apartment block access etc.

Competitive Advantage

We will provide the anti-bumping functional adhesive tape and pressure waves

Package

How we package them.

All of our products delivery by Sea or Air, the pack material is Poly film+Carton,and this pack way has been tested many many time in different transportation situation from our Simulated transport machine.

Shenzhen WCH Technology Co,.Ltd will service for you wholeheartedly

Please dont hesitate to contact with us if any any question.
