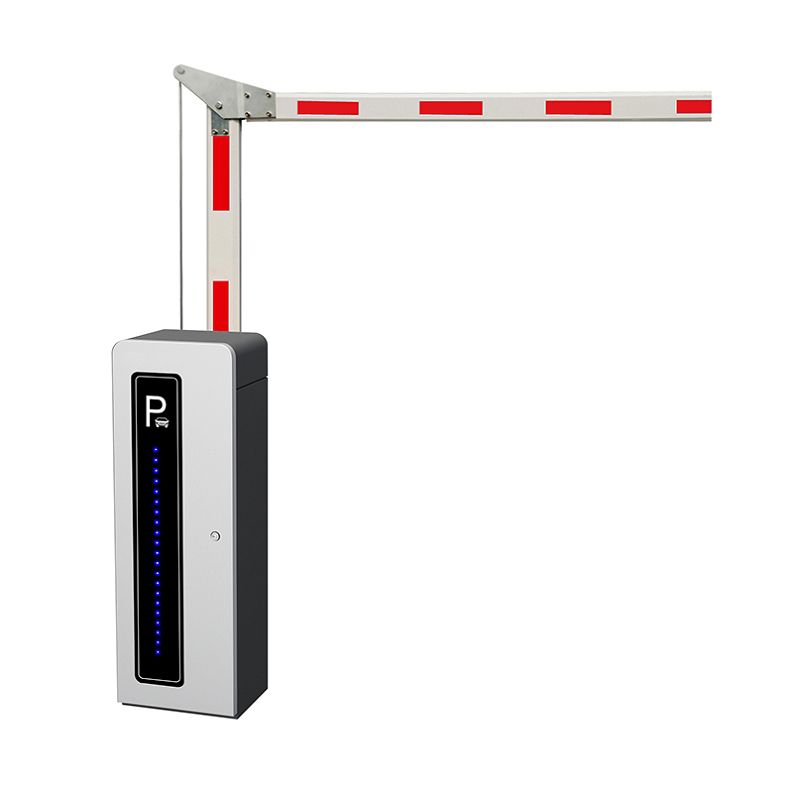

Folding Barrier Gate

This product uses the latest mold design technology, die-casting manufacturing technalogy and no clutch design. So the quality is reliable.

Send Inquiry

Product Details

image001(001)

Description

This product uses the latest mold design technology, die-casting manufacturing technalogy and no clutch design. So the quality is reliable. And The mechanism uses the gear worm and crank link structure. which make the boom operate quickly and steadily. And the maintenance will be easy and convenient.

Function and Features

● Open the barrier gate by motor wheel when power off and automatic reset when power on.

● Balanced boom running with a motor transmission of cranks and shafts.

● Remote control to operate the barrier gate.

● Auto-reverse when boom meets obstruction (only for barrier using digital limit device)

● Infrared photocells interface is available (need to install photocell device).

● Loop detector interface is available (need to install loop detector) .

● Well-integrated with car parking system equipments, with wire control (must be dry contact signal).

● Interface for traffic light, dry contact output (traffic light must be less than 10A)

● Offering signal of limit status for car parking system (output COM, NC, NO).

● Auto-closing function (adjustable from 3s to 30s, factory default off this function)

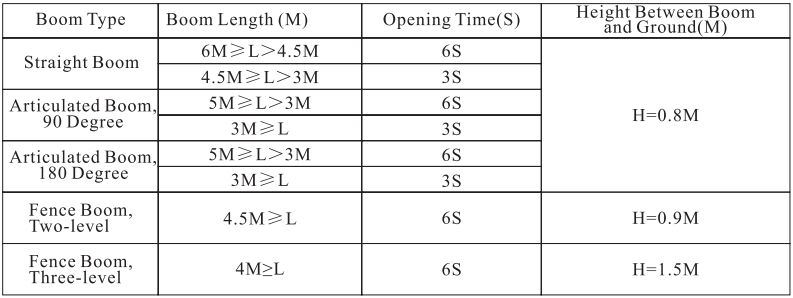

Technical Data
