DC Boom Barrier Gate Boom For Parking Lot
Through the advanced single-chip control core,combined with modern high-tech real-time embedded control method unique design. Built-in remote control reception. It has the characteristics of high integration, simple circuit, powerful function, stable performance, simple operation and long service life.
Product Parametres:

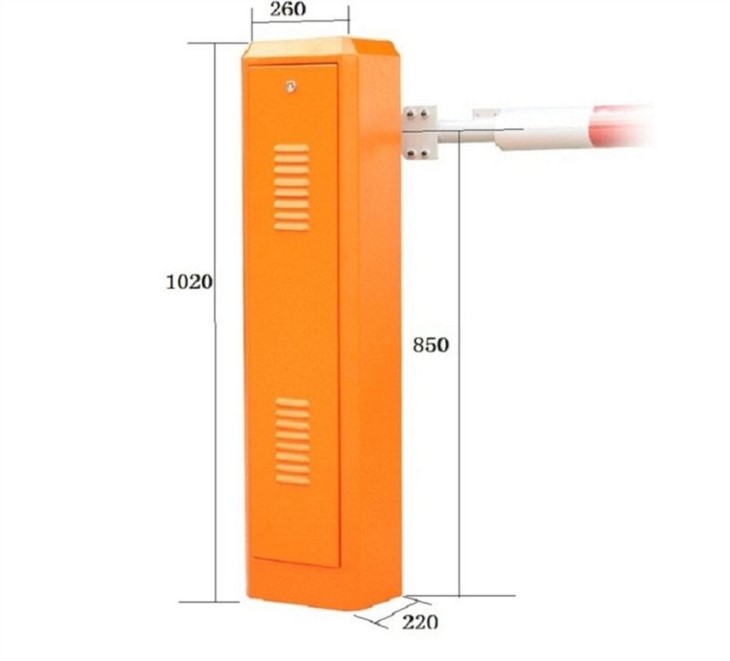

Dimensions: 195x180x865mm
Input voltage: 176-260VAC
Working voltage: DC30V/10A, 12V2A, 5V/5A
Motor power: 250W
Motherboard power: 15W
Working temperature: -40°C-80°C
Relative humidity: RH<95%
Communication method: TCP/RS485/RS232
Communication rate: 10/100m 115200B/S
Communication distance: 100 meters / 1200 meters
Maximum rod length: 4m (Φ38mm high speed brake)
Lifting speed: 0.5s~4s, falling speed 2-4s
Output port drive capability: 50V/1000mA
